"These bikes are shipped unassembled. Bikes should be assembled by an authorized bicycle retailer"

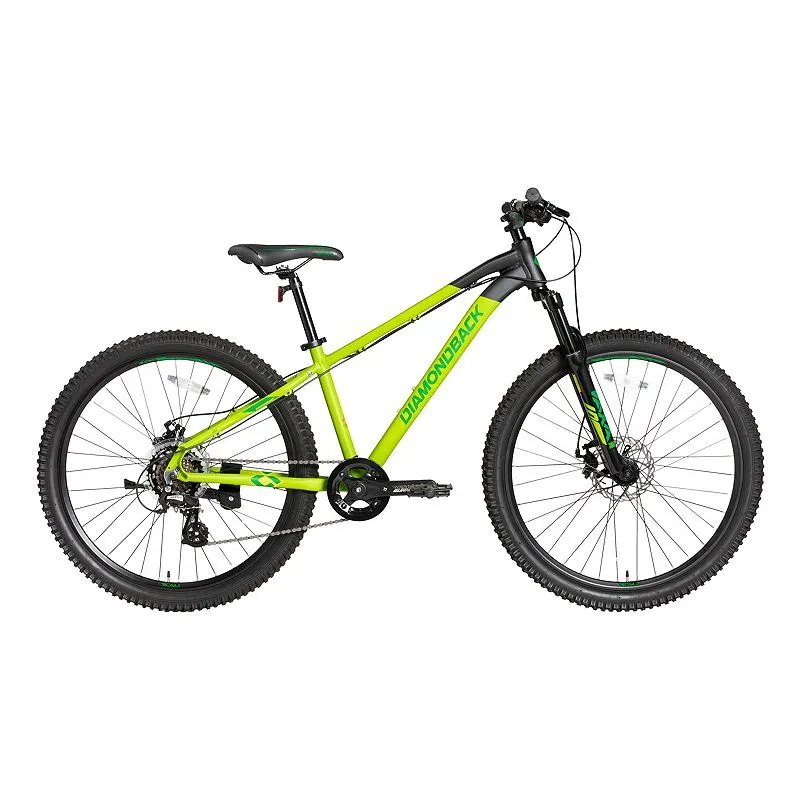

The Diamondback Pines is designed specifically as a “tweener” bike for those rider’s who won’t quite fit a 27.5” wheeled mountain bike. The lightweight 26” hardtail design, quality Shimano components and 7 speed drivetrain provides the young, or smaller rider with a versatile bike that is great for all around riding on a variety of trails, and the Shimano mega-range freewheel will help them get up any hills they encounter on their journey.
-
Lightweight 6061 T6 aluminum frame with Diamondback's formed tubing features optimised wall thickness for a balance of strength, weight, and stiffness that translates to a responsive, and reliable ride
-
Vaxa 100mm travel front suspension fork with adjustable preload soaks up the bumps and offers smooth and confident control over various terrain
-
26" x 2.3" aggressive MTB tires for traction that will bite into any trail conditions
-
JAK-8 mechanical disc brakes make for sure stopping power in both wet and dry conditions
-
Shimano 7 speed M315 Rapid Fire Plus will have you shifting gears with ease while you're out and about over various terrain.
-
Durable CAVU double wall aluminum wheelset wrapped with meaty 26" x 2.3" tires for excellent performance on various off-road trails
-
CAVU Comfort-Mountain saddle is equipped with a quick release seat post clamp so it's always easy to find the perfect saddle height.
-
CAVU Lock on grips for a confident and reliable connection point in wet or dry conditions
SPECIFICATIONS
- FRAME
- Frame: 6061 T6 heat treated aluminum frame
- Rear Shock: N/A
- Fork: Vaxa 100mm travel, with pre-load adjust
- Cable Routing: External guided w/ full length housing
- DRIVETRAIN
- Rear Derailleur: Shimano Altus M310, 7 speed
- Front Derailleur: N/A
- Shifters: Shimano Rapid Fire M315 (RH), 7 speed
- Cog Set: Shimano MF-TZ500-7, 14-34T 7 speed freewheel
- Chain: KMC Z7
- Crankset: ProWheel Alloy, 9/16 x 165mm, w/ bash ring
- Bottom Bracket: Gineyea BB73-68, square taper, sealed cartridge
- COMPONENTS
- Front Brake: JAK 8 Mechanical Disc, 160mm rotor
- Rear Brake: JAK 8 Mechanical Disc, 160mm rotor
- Brake Levers: JAK Alloy
- Headset: Neco H-148, 1-1/8" threadless, Semi-integrated
- Seat post: CAVU 27.2mm x 300mm Alloy
- COCKPIT
- Handlebar: CAVU, 31.8mm*680mm
- Stem: CAVU Alloy, 31.8mm, 50mm
- Saddle: CAVU MTB
- Pedals: 9/16" Resin body, flats
- Grips: CAVU Lock-on w/ closed end
- WHEELS/TIRES
- Rims: CAVU Aluminum double wall, 36 hole, 26"
- Front Tire: 26" x 2.3" for all-terrain
- Rear Tire: 26" x 2.3" for all-terrain
- Tubeless Ready: No
- Front Hub: Alloy w/ quick release axle
- Rear Hub: Alloy w/ quick release axle
